ULS-ProCopter Datasheet

ULSDC-PBDS070425 · version 1.0.0 · issued June 14, 2025
The numbered PDF is the controlled copy: download it from the portal.

Introduction

Purpose

The purpose of this datasheet is to provide comprehensive technical information about the ULS-ProCopter System family. This includes specifications, performance characteristics, and detailed descriptions of system components, such as transmitters and receivers. By outlining the interfaces between these components, the datasheet aims to facilitate seamless integration and operation for system engineers, integrators, and developers working with ULS-ProCopter systems.

Scope

This document is intended for use by system engineers, integrators, and developers working with ULS-ProCopter systems. It provides detailed information on the system.

System Base Components

Transmitter (Ground Unit)

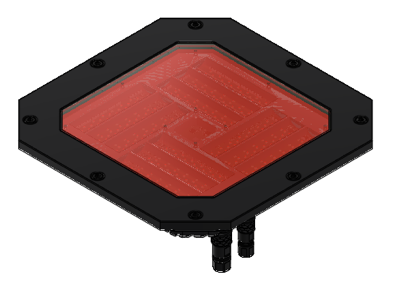

Figure: ULS-ProCopter Transmitter

A transmitter is a device placed on the ground (platform, moving object). It emits a signal in the Infrared range and serves as a kind of beacon. Transmitter marks position for drone landing.

The primary function of the transmitter is to continuously send out a coded signal that can be detected and interpreted by the receiver unit onboard the ULS-ProCopter. This signal contains critical information needed for the operation of the ULS-ProCopter, such as positional data, commands, and system status.

Receiver (Onboard Unit)

Figure: ULS-ProCopter Receiver

A receiver is a device that is placed on board an aircraft.

The receiver decodes this signal to derive flight information such as positional coordinates, real-time transmitter status updates, and landing guidance. It interprets the data to navigate accurately and ensure drone follows the intended flight path. It provides feedback to the autopilot systems, such as Ardupilot and PX4, to adjust the flight parameters as needed for optimal and safety landing or hovering above.

Part Numbering

Table: ULS-ProCopter Part Numbers and Descriptions

System specification.

Common specification:

Table: Common System Specifications Receiver (on board unit):

Table: Receiver Specifications Transmitter (on ground)

Table: Transmitter Specifications

Pinout information

Transmitter pinout

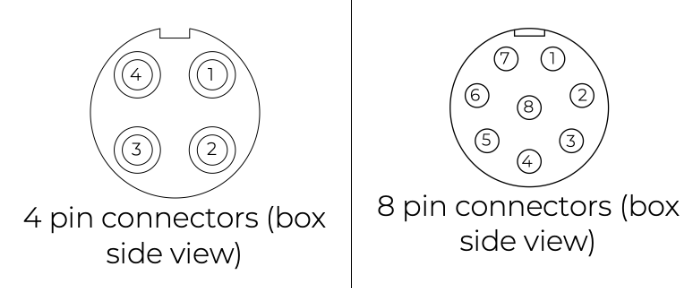

Figure: ULS-ProCopter Transmitter Pinout Diagram

Table: Transmitter 8-pin Main Connector Pinout

Table: Transmitter 4-pin Connector Pinout

Receiver pinout

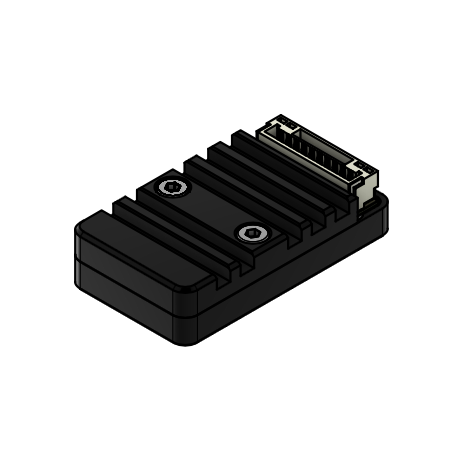

Figure: Receiver Top Side Connector Variant

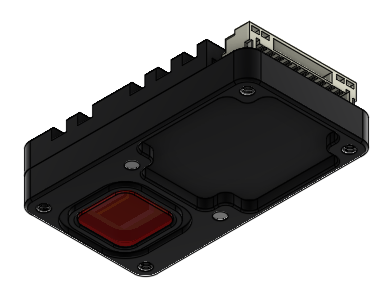

Figure: Receiver Strait Variant

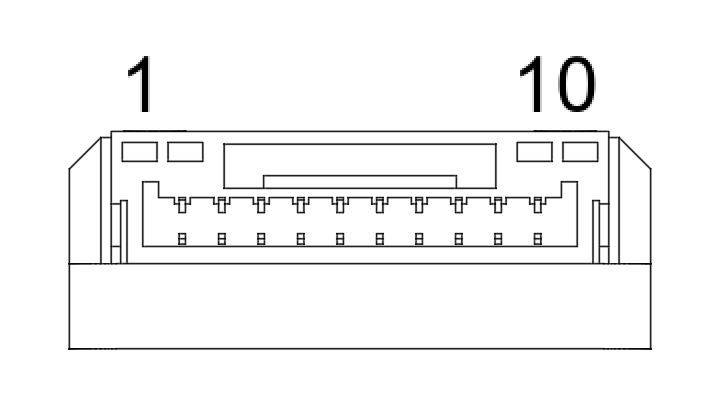

Figure: ULS-ProCopter Receiver connector

Table: Receiver JX1 Connector Pinout (External Power and Control)

Mechanical dimensions

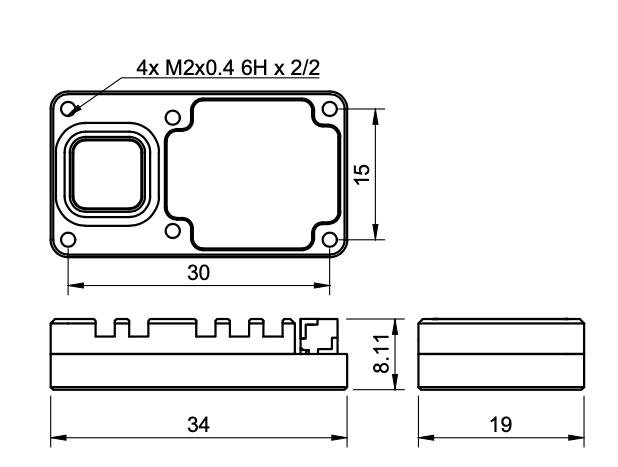

Figure: ULS-ProCopter Receiver dimensions

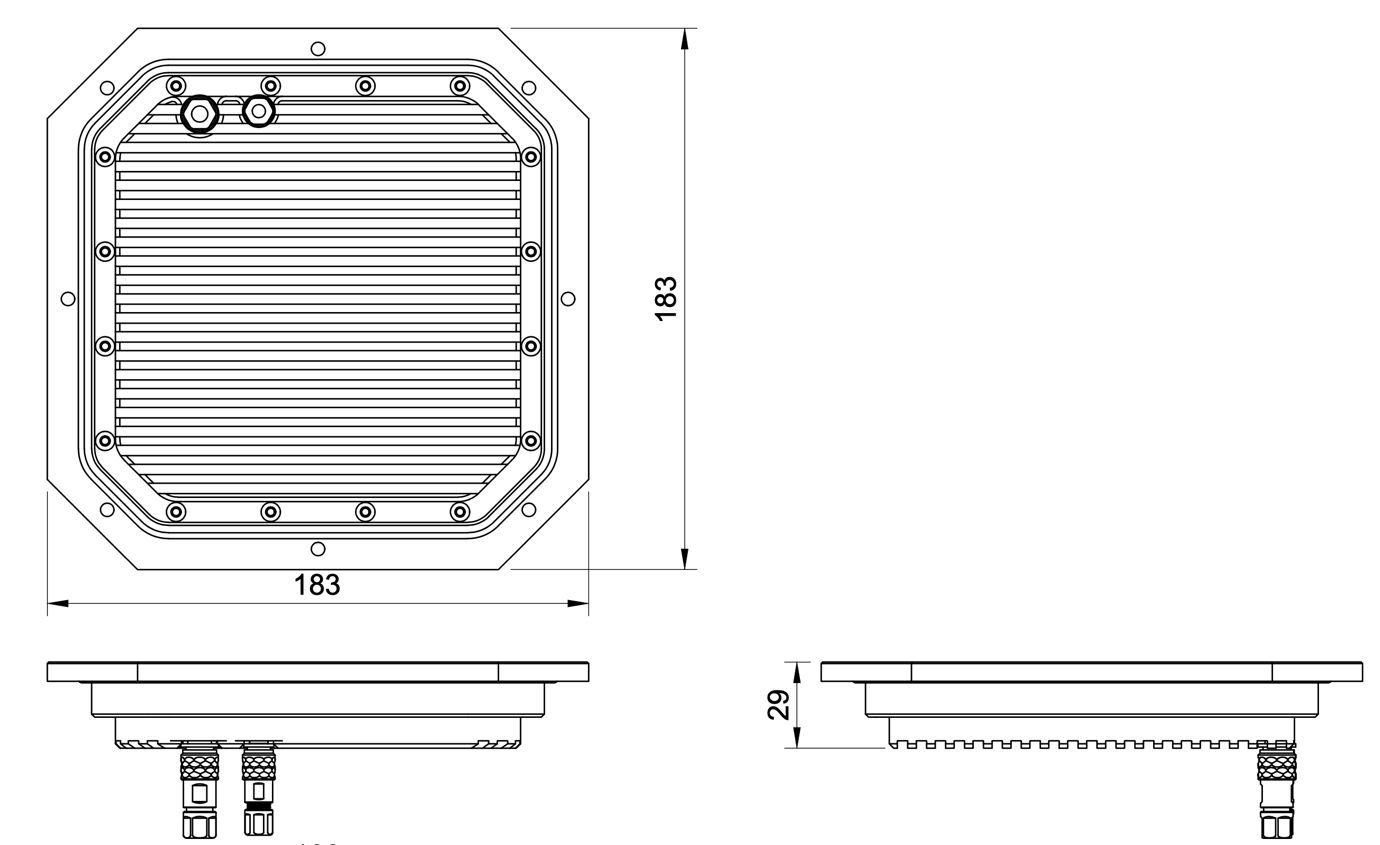

Figure: ULS-ProCopter Transmitter Mechanical Dimensions

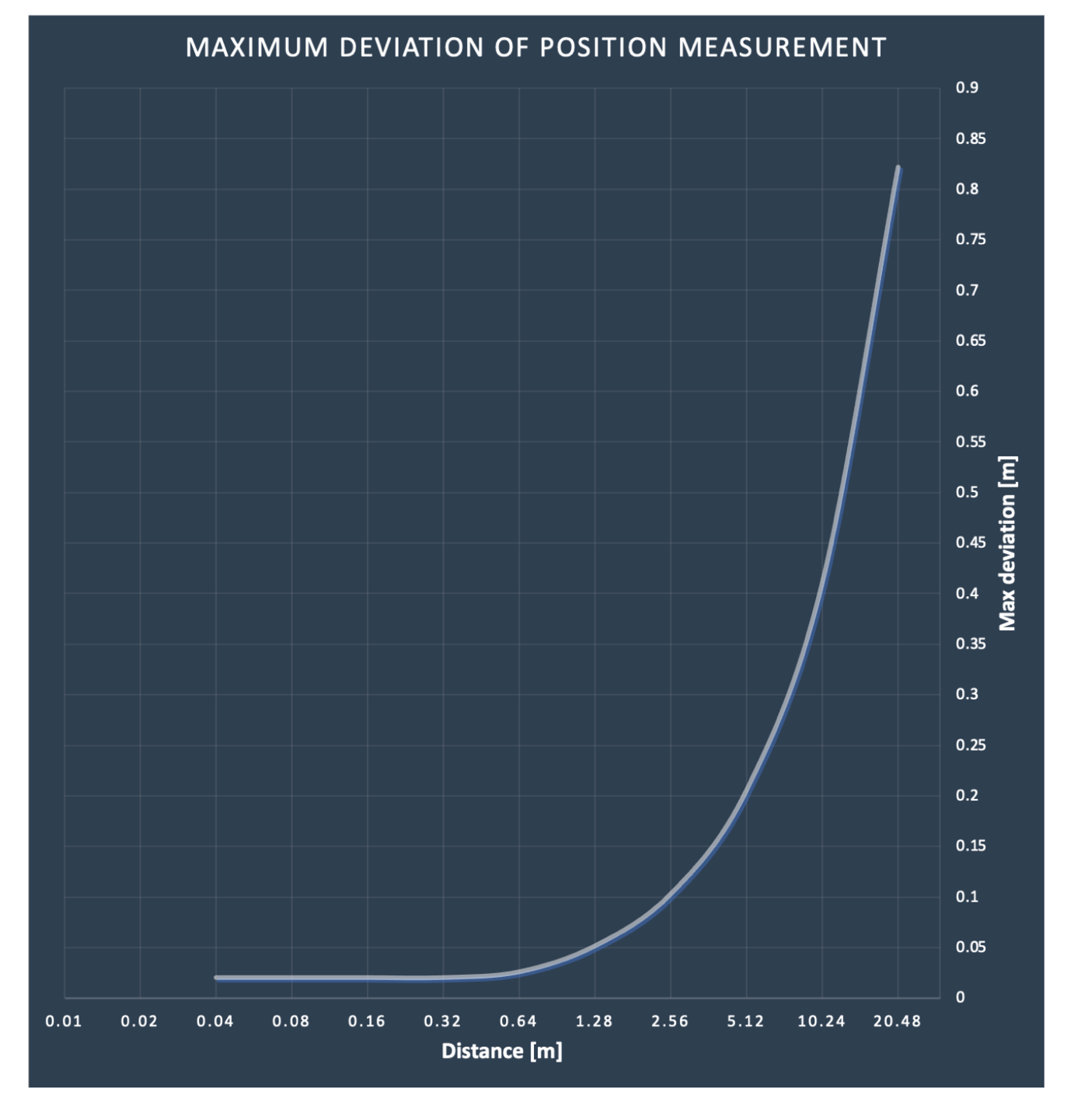

System performance characteristics

Environmental Conditions - Industrial Grade

Equipment is designed to operate reliably in demanding environmental conditions typical of aerospace, industrial automation, and outdoor applications.

Operating Temperature Range

• Standard operating range: -20°C to +55°C
• Covers most industrial and outdoor applications
• Reliable performance across temperature extremes
• No performance degradation within specified range

Humidity Tolerance

• Relative humidity: Up to 70% (non-condensing)
• Protected against moisture in typical operating conditions
• Suitable for outdoor and semi-protected installations
• Condensation prevention through sealed design

Ingress Protection

• IP67 rated (Dust tight and water immersion resistant)
  • 6 - Complete protection against dust ingress
  • 7 - Protected against temporary immersion in water (up to 1 meter depth for 30 minutes)
• Suitable for harsh industrial environments
• Protected against rain, splashing, and temporary submersion
• Dust-tight sealing for contaminated environments

Storage Conditions

• Storage temperature: -40°C to +70°C
• Relative humidity: Up to 95% (non-condensing)
• Long-term storage in industrial facilities

Operational Environment Standards

• Designed to meet industrial equipment requirements
• Suitable for UAV/drone applications
• Outdoor installation capable
• Protected against:
  • Dust and particulate matter
  • Water spray and rain
  • Temporary water immersion
  • Temperature fluctuations
  • High humidity

Change Control

All changes to this document must be reviewed and approved by the relevant technical leads and stakeholders
